Search Kitting Work Order
Required Permissions
- View Work Orders
- ability to search and view Kitting Work Orders
- Modify Work Orders
- ability to add, view, edit, cancel and close Kitting Work Orders
- View Reports
- ability to print and export Work Orders List Report
Search Kitting Work Order

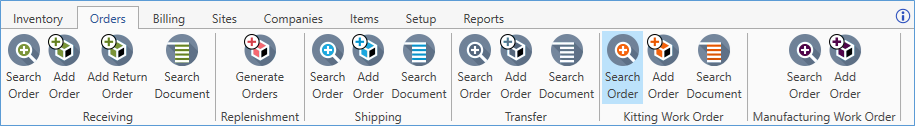

- Go to Orders tab of the main menu.
- Select Kitting Work Order -> Search Order menu item.

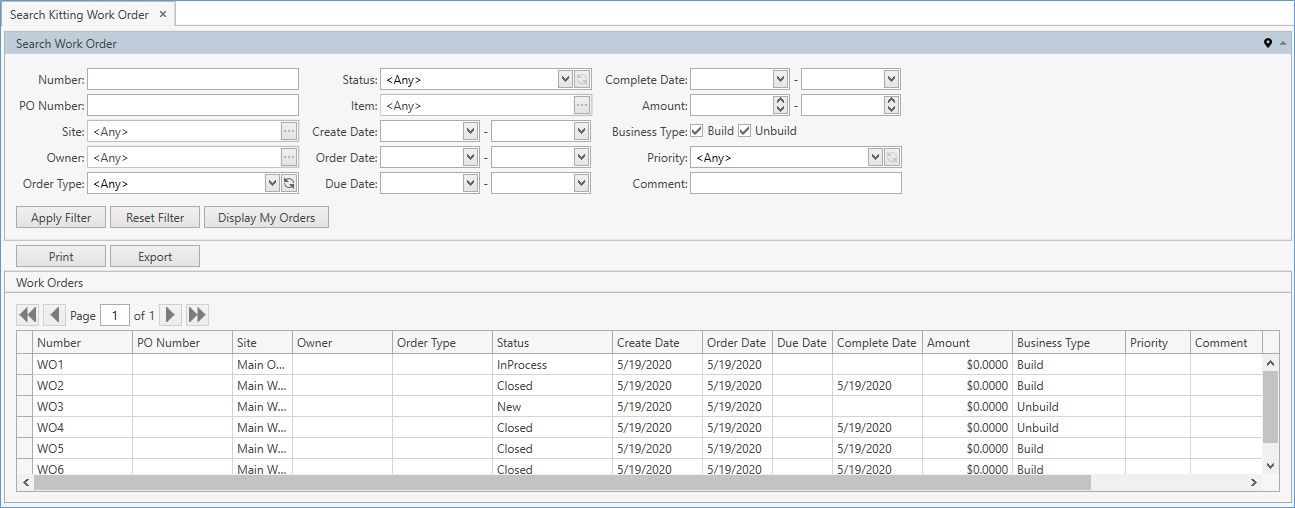

The following window displaying Work Orders opens:

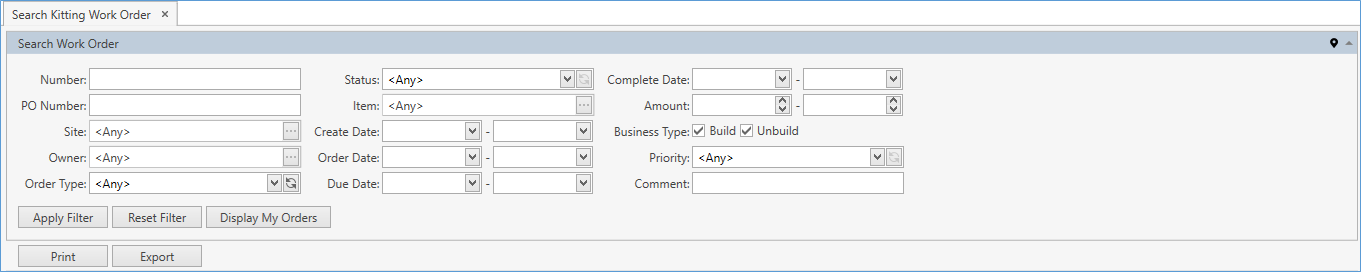

- Specify the necessary search criteria in Search Work Order frame:
The following optional filters can be applied:
| Filter | Comment |
|---|---|
| Number | |
| PO Number | |
| Site | Drop-down list of active Sites that you have access to. The necessary Site can be searched by the ellipsis button [...] as well. CoreIMS automatically prepopulates the field, if you have a specified Default Site (please refer to Users section). |
| Owner | Drop-down list of active Companies marked as Owner. The necessary Company can be searched by the ellipsis button [...] as well. Visible only if Ownership mode is set up as Item level or Stock Level in System Settings. If you (your CoreIMS user) have a specified Owner (please refer to Users section), you will be able to search for Work Order(s) only of this Owner or without owner. |
| Order Type | Drop-down list of Order Types. |
| Status | Drop-down list of the predefined system values: New, In Process, Closed, Canceled, In Process + Not Allocated, In Process + Partially Allocated, In Process + Fully Allocated. |
| Item | Drop-down list of active items. The necessary item can be searched by the ellipsis button [...] as well. Multiple Select is supported. |
| Create Date | You can specify the date range when the Work Order(s) you are looking for was created. |
| Order Date | You can specify the date range of Order Date for the Work Order(s) you are looking for. |
| Due Date | You can specify the date range of Due Date for the Work Order(s) you are looking for. |
| Complete Date | You can specify the date range when the Work Order(s) you are looking for was closed. |
| Amount | You can specify the range of Amount for which the Work Order(s) you are looking for was built/unbuilt. |
| Business Type | Checkboxes: Build, Unbuild. |
| Priority | Drop-down list of the predefined system values: Rush, Low, Medium, High. |
| Comment | |
| Custom Fields | If Kitting Work Order has any Active Custom Fields. |
CoreIMS allows you to do the following when searching:
1) search by the beginning or by any part of text fields;
2) hide/unhide search filters;
3) collapse/expand the filter area;
4) fasten/unfasten the filter area.
- Once you specify all necessary filter criteria, click Enter or Apply Filter button.

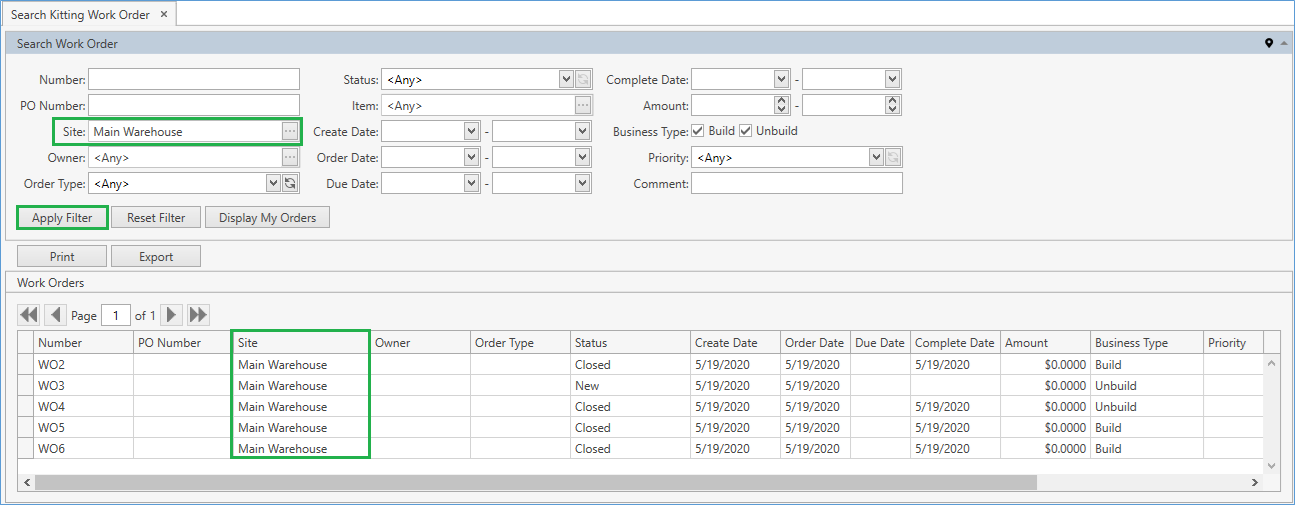

The results that satisfy the search criteria will be loaded to Work Orders frame:
If needed, reset previously specified filter criteria by clicking Reset Filter button.
You can also search for Work Orders created by you (your CoreIMS user) by clicking Display My Orders button:
- once you click Display My Orders button, it will be renamed to Display All Orders button - you can click it in order to display back orders created by all users.
Use navigation buttons
to switch the pages of the grid.
You can also customize the view of the grid and use Ctrl+F for searching.
View and Edit Kitting Work Order

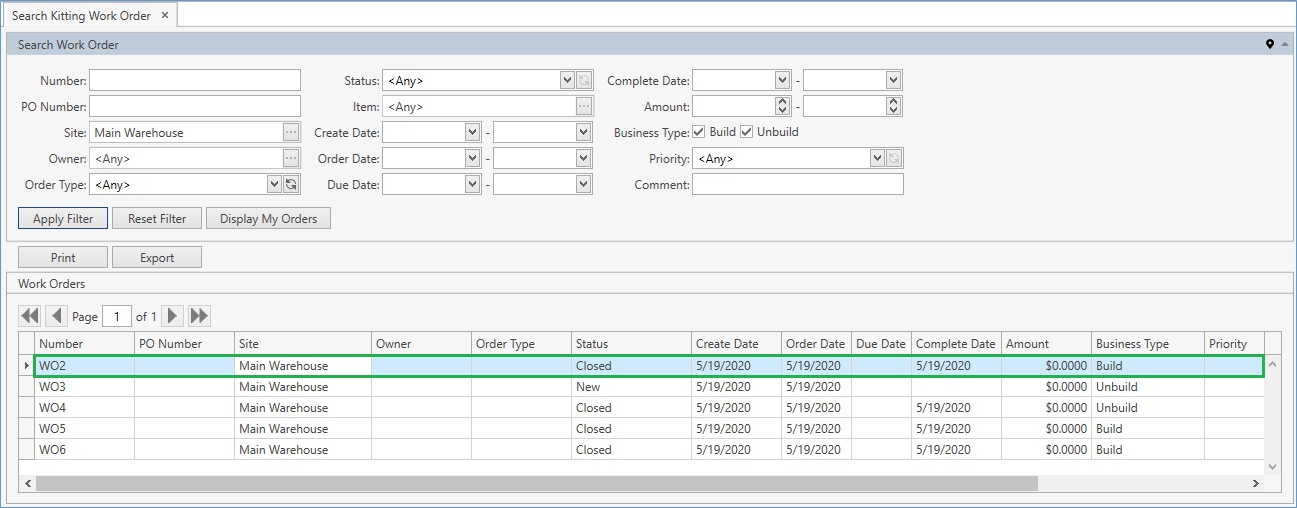

You can view and, if needed, edit the necessary Kitting Work Order by double-clicking on it on the grid:

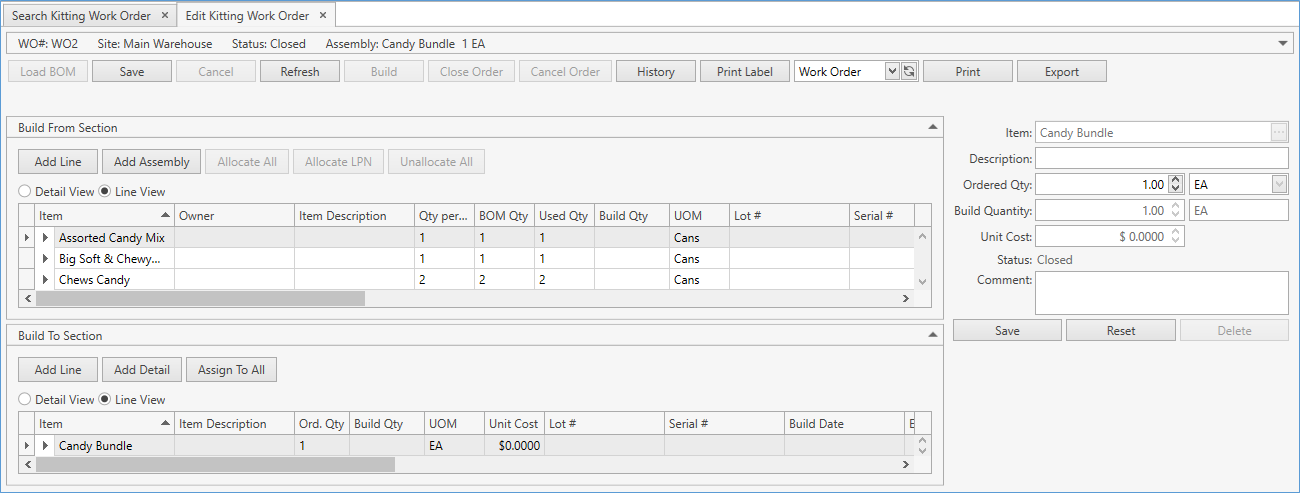

Edit Kitting Work Order window opens:
Please refer to Kitting Work Orders section to find out which operations are available for you from this screen.
Work Orders List Report
You can print or export Work Orders List report displaying the data from the grid on Search Work Order screen. To this end use Print or Export button accordingly.
Troubleshooting
1. The Order cannot be found.
Check if you specified the necessary search criteria.
